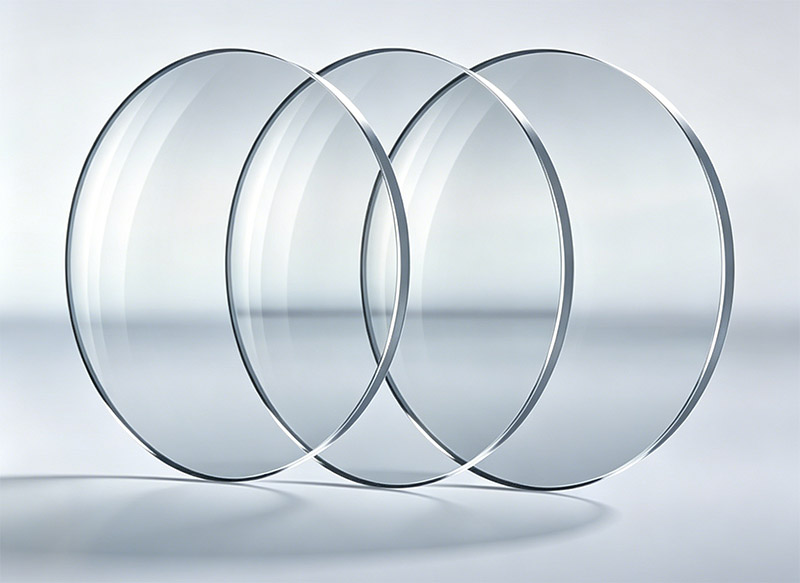

Many people don't realize that the resin lenses we wear today are actually "semi-finished products" in their raw state. The substrate itself has a light transmittance of only 88% to 91%, and its soft texture makes it highly prone to scratching from a simple wipe. Have you ever seen an uncoated lens? It is highly reflective and extremely fragile. Coatings are engineered precisely to solve these issues. By applying special materials to the lens surface, it essentially adds a "protective layer" and a "functional layer."
Most misconceptions about lens coatings stem from the belief that there is "only one layer." A qualified optical lens coating is not just a layer of pigment sprayed onto the surface. Instead, techniques like vacuum sputtering are used to layer over a dozen to dozens of nanometer-scale thin films on both the front and back of the lens. Each layer is only a fraction of the width of a human hair, featuring different materials and functions that work in synergy.
From the inside out, a complete coating system typically divides its workload as follows:
-
Hard Coating (Anti-Scratch) closest to the substrate: It fills the microscopic pores on the resin surface, dramatically increasing lens hardness to resist scratches and wear.
-
Multi-Layer Anti-Reflective (AR) Coating at the core: A combination of layers made from different materials, each neutralizing reflections of various light wavelengths. This is the core component for boosting light transmittance and reducing glare.
-
Functional Coatings embedded in the middle: Such as blue-light blocking or UV-blocking films, which selectively filter out specific types of light.
-
Hydrophobic, Oleophobic & Anti-Static Coating on the outermost layer: It lowers surface tension so water droplets and oil stains can't cling to it, while making it harder for dust to adhere.
A large part of the gap between premium lenses and cheap ones lies in the design of the coating system, the uniformity of the layers, and the purity of the materials. It is absolutely not as simple as "adding a film just to charge you more money."
What Exactly Does a Coating Do?
1. Clearer Vision: Brighter and More Realistic Images
With an uncoated resin lens, 4% to 8% of light is reflected away every time it hits a surface. Combining both the front and back surfaces, the effective light entering your eyes naturally drops by more than 10%. You might think you can see clearly, but the image is actually always "grayish and dim," as if looking through a thin mist.
A high-quality multi-layer AR coating can push the overall light transmittance of the lens to over 98%. With fewer reflections and more light passing through, the clarity and color saturation of the image improve significantly. This difference in transparency becomes exceptionally noticeable when driving at night or looking at a screen in low-light environments.
2. Reduced Reflections: Better Looks, Higher Safety
These are the two most intuitive benefits of AR coatings.
Looking outward: Intense reflections on the lens surface are minimized. In the past, when taking photos or speaking under bright lights, your lenses would always show a stark white glare, hiding your eyes. With coatings, reflections are drastically reduced, making communication and photography much more natural without needing to awkwardly angle your head to avoid glare.
Looking inward (and more importantly): It eliminates "ghost images" and double vision inside the lens.
When light passes through the front surface of an uncoated lens, it reflects a second time off the back surface, creating a faint secondary image in your field of vision—known in the industry as a "ghost image." When driving at night, streetlights and oncoming headlights will drag out double images, distracting your attention and causing severe eye fatigue over time. Double-sided coatings greatly weaken these internal reflections, providing a cleaner night vision with less glare, making driving or walking at night much safer.
3. Enhanced Scratch Resistance
The most basic yet useful layer is the scratch-resistant coating. Ordinary resin lenses are relatively soft; wiping them with a lens cloth a few times can cause fine scratches, making them look hazy within six months. A hard coating protects the lens from damage to a certain extent. Lenses with this coating are resilient against daily wiping and minor bumps, significantly extending the effective lifespan of a pair of glasses.
4. Hydrophobic and Oleophobic: Hassle-Free Daily Maintenance
Everyone has experienced this annoyance: a single touch leaves a fingerprint, or a splash of oil during a meal leaves a stubborn smudge that takes forever to wipe away.
The outermost hydrophobic and oleophobic coating lowers the surface energy of the lens to a minimum. Water droplets roll right off like beads, and oil stains find it hard to stick. When it gets dirty, a gentle wipe with a lens cloth cleans it right up without aggressive rubbing, which saves effort and minimizes the risk of scratching.
5. Targeted Protection: Giving Your Eyes an Extra Buff
This is where coatings offer the most flexibility, allowing different functional layers to be stacked based on your needs:
-
For those who stare at screens all day, a blue-light blocking coating can filter out harmful short-wave blue light emitted by screens, relieving eye strain from prolonged screen time.
-
For outdoor enthusiasts, a full-band UV-blocking coating stops UV rays not only from the front but also blocks the UV rays reflected off the back surface of the lens. This is much more comprehensive than relying solely on the substrate's UV protection, acting like a sunscreen jacket for your cornea and crystalline lens.
-
An anti-fog coating is perfect for people who wear masks in winter or frequently move between environments with large temperature differences (such as chefs and healthcare workers), effectively reducing lens fogging.
Conclusion
Optical coating is not an optional "add-on," but an indispensable part of an optical lens. Using films just a few to several hundred nanometers thick, it alters the laws of light propagation to unleash the peak performance of optical equipment. Next time you catch a colorful reflection on your lenses, you will know that it is the gleam of technology at work.
